Thefeatures:
Three sections of guide rail design,savewaiting time,improve the production efficiency.
High automation,the man-machine interfaceoperate, single minute exchange of die, can do Complex precision weldingprocess.
Solder wirework position and system can adjustment.
Non-contact welding, laser source longlife, low power
Thespot energy is concentrated and the heat affected area is reduced.
Slodering type

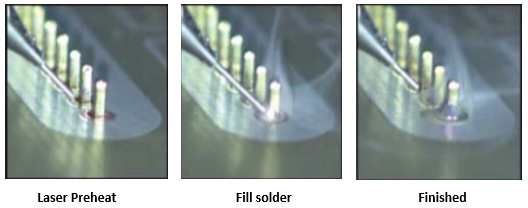

Laser soldering working process

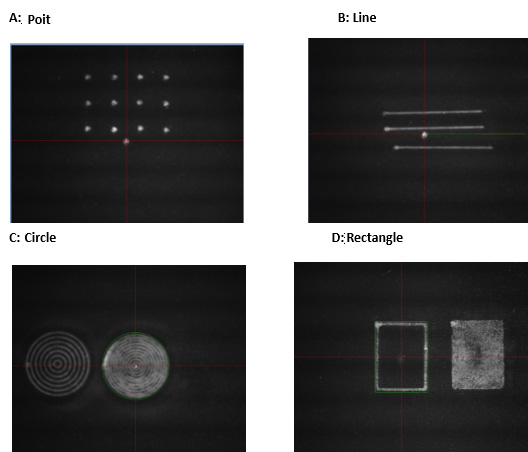

Samples
Line part:
B、Mounter part:
Machine Sizes
Specification

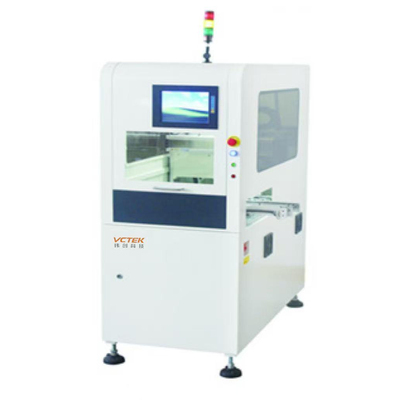

Model
| VS-500 |
Mechanical dimension | 1300*650*1550mm(LⅹWⅹH) Excluding the anchor and Lighthouse |
Weight | about 350KG |
PCB size range | 60ⅹ60mm(Min)～340ⅹ350mm(Max) |
PCB thickness range | 0.5mm～3mm |
PCB maximum weight | 0.8KG |
PCB bending | ±1mm |
PCB edge gap clamping system | Front and rear are:3mm |
Working direction | Left→Right/Right→Left |
Drive system | Modular servo control system |
Limit system: | Sensor+Cylinder |
Transmission parts | Belt |
Guide system | Automatic |
Moving speed
| 1-1000mm/sec |
CCD Vision position | Industry CCD,MARK Point compensation |
Light | LED light |
Control system | Industrial Personal Computer （IPC）+PLC |
Operation interface | VECTRON Control Software |
Operating system | Windows 7 |
Language | Chinese/English |
Operating manual | CD |
Network | Ethernet 100M |
Power | AC220V 50/60Hz |
Pressure | 5～8 Bar |
Error Alarm
| YES
|
Note:The above parameters for the standardconfiguration,if special needs can be customized according to customerrequirements,technical specifications are subject to change without notice,allright of final interpretation VECTRON
